Barometer type siphon

Dating

April 1881

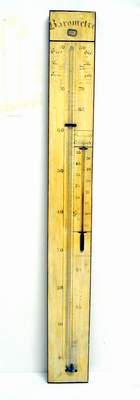

The siphon barometer derives from the torricellian one (tub type) by bending into asymmetrical U the barometer's pipe. The longest branch is closed, while the shorter one is open. Such a configuration of the pipe was an idea of Blaise Pascal (1623-1662), published after his death in 1663, and then taken again by Robert Boyle (1627-1691) in 1669. In 1816 Joseph Gay-Lussac (1778-1850) introduced an important modification to the siphon barometer which improved the capability of the instrument to be easly transported. This produced the siphon barometer associated to his name. On the tool appears at the top the inscription "Baromètre". The scale relative to the atmospheric pressure goes from 0 to 80 cm, with precision of 5, however between 70 and 80 the division has a step of 1/10 (precision of 1 mmHg). The temperature scale goes from -15 to +55 °C, with precision of 1 °C. In the past the mercury inside the pipe was removed.

Web page

Barometer type siphon

Cataloghi	Nº	Voce
Inv. 2016	337	Barometer type siphon Provisional numbering!
Inv. 1925a	282	Barometro a sifone
Inv. 1870	483	Barometro a sifone

Section

Thermodynamics

Window

In sala

Conditions

Complete

Working NC

Intact

Large	11.0 cm (4.3 in)
Width	3.0 cm (1.2 in)
Height	96.0 cm (37.8 in)

Materials

brass, wood, glass, lacquer, alchool

Sources

Battelli A. - Cardani C., Trattato di fisica sperimentale ad uso delle università, Francesco Vallardi, Milano, 1922, Vol. 1, pag. 504, fig. 372
Bernardi G., Apparecchi di fisica, III Edizione, Ditta Prof. Gaetano Bernardi, Tranto, 1931, pag. 17, fig. 5118
Bouchardat A., Physique élémentaire avec ses principales applications, Germer Baillière, Paris, 1851, pag. 49, fig. 19
Clerc A., Fisica popolare, Edoardo Sonzogno, Milano, 1885, pag. 220, fig. 162
Daguin P. A., Cours de physique élémentaire avec les applications a la météorologie , E. Privat, Toulouse, 1863, pag. 112, fig. 127
Despretz C., Traité élémentaire de physique, Méquignon-Marvis, Libraire-éditeur, Paris, 1832, pag. 290, Tav. 6, fig. 162
Drion Ch. - Fernet E., Traité de physique élémentaire, G. Masson éditeur, Paris, 1877, pag. 98, fig. 109
Felice M., Elementi di fisica, Ditta G. B. Paravia e Comp., Torino, 1887/90, Vol. 1, pag. 360, fig. 137
Jamin J., Piccolo trattato di fisica, B. Pellerano, Napoli, 1880, pag. 85, fig. 85
Milani G., Corso elementare di fisica e meteorologia, Editori della biblioteca utile, Milano, 1869, Vol. 3, pag. 28, fig. 15
Privat Deschanel A., Trattato elementare di fisica, Fratelli Dumolard, Milano, 1890, pag. 110, fig. 104
Resti E., Catalogo generale di apparecchi per l'insegnamento della fisica, Ditta Emilio Resti di Franco Brambilla, Pubblicazi, Milano, 1930, pag. 28, fig. 126
